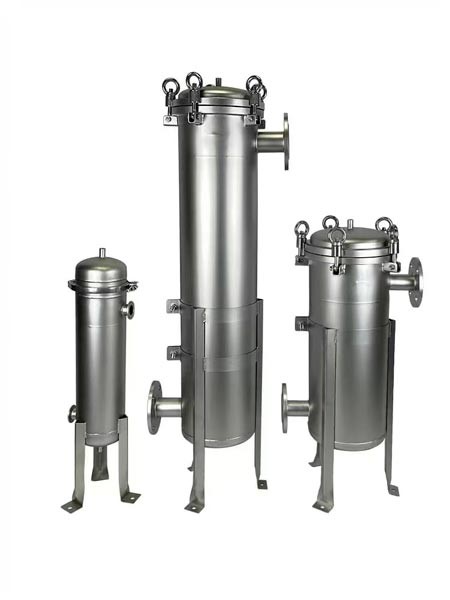

Stainless Steel Single Bag Filter Housing
1. Material: SUS304 SUS316L
2. Max working pressure: 100-300psi – TC-clamp & Swing Bolt Closure
3. Surface finish: Mirror Polishing
Stainless Steel Single Bag Filter Housing, Liquid filter housing, Beverage filter housing
Features:
Heavy Duty Support Legs
O-ring: EPDM; Viton
1/2″ Drain and 1/4″ NPT Vent or Gauge
Heavy Duty Cast Cover and Structure
100-300 PSI Pressure Rating
Alternate Porting Available
Filter bag: Universal 1# 2# 4#
Electropolish Available

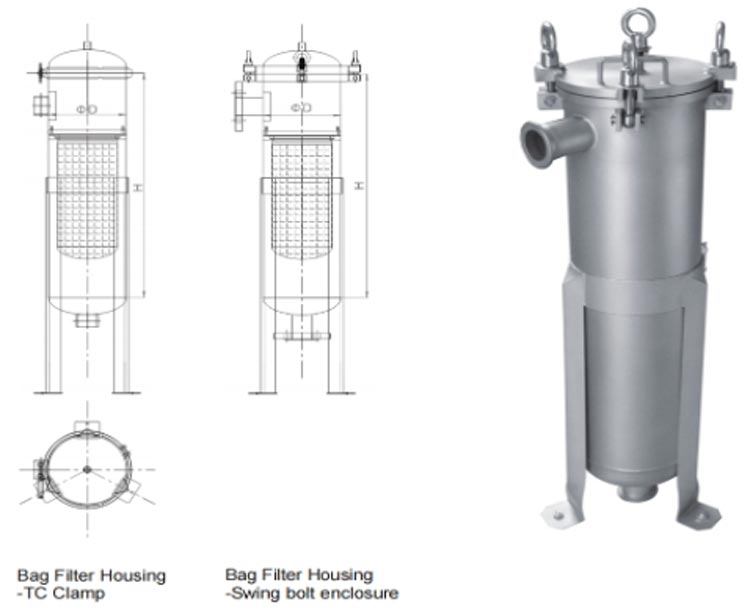

| NO. | MODEL | SPEC (ΦD×Hmm) | Inlet/Outlet | Remarks |
| 1 | TM-DY0101 | Φ219×610m | 2" | Clamp |
| 2 | TM-DY0102 | Φ219×980m | 2" | Clamp |
| 3 | TM-GY0101 | Φ219×610m | DN50 flange | Swing Bolt |
| 4 | TM-GY0102 | Φ219×980m | DN50 flange | Swing Bolt |
Trade:
MOQ: 1 Set Stainless Steel Water Filter
Trade Terms: CIF, FOB, FCR, EXW
Payment Terms: L/C, T/T, Western Union, MoneyGram; 30% deposit in advance, 70% balance before shipping
Delivery Time: 10-30 working days depend on quantity
Packing: Standard package
Shipping: By sea, by air, by express etc.
Service:
1. Professional technology support
2. 1 years quality guarantee, all products 100% tested by water pressure before shipment.
3. Delivery in time
4. Most competitive price, professional factory
5. Many years production and sales experience
6. Commitment to our customers, friendly staff
7. Stainless steel material, better quality, environmental friendly.
