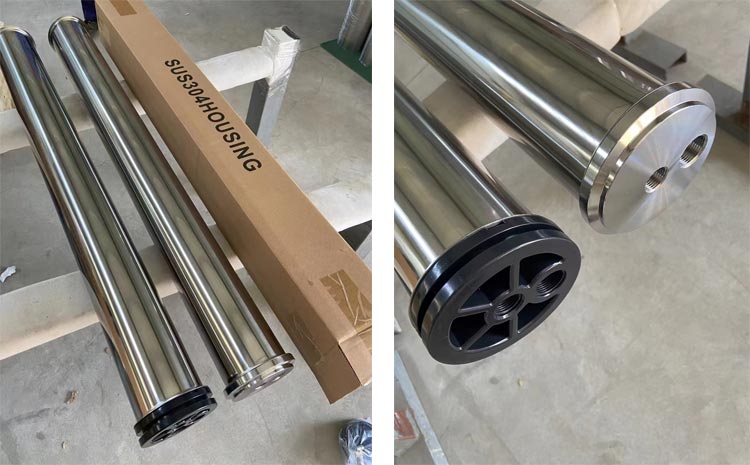

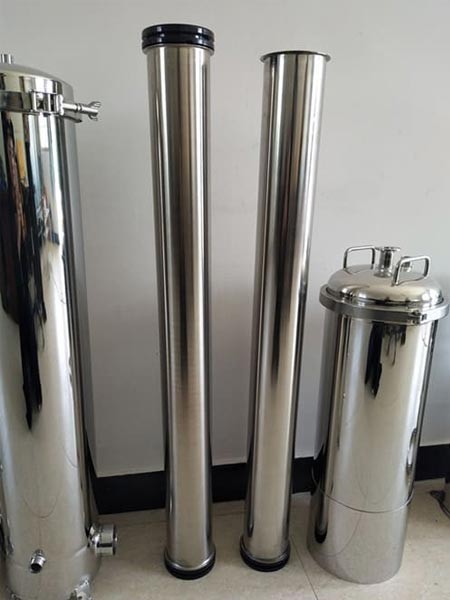

4040 Stainless Steel Membrane Shell

4040 Stainless Steel Membrane Shell has two types according to pipe design: seamed or seamless.
Seamed vessel thickness:1.25mm
Seamless vessel thickness:1.8mm
Both housing with same structure design

High Quality 4040 SS304 SS316L Stainless Steel RO Membrane Shell

SS RO membrane housing_ad.jpg

1. Material: SUS304 SUS316L

2. Max working pressure: 300 psi

3. Surface finish: Mechanical Polishing

Model	L (mm)	L1 (mm)	D (mm)	A (In)	B (Out)
TM1-4021	602	550	Ø102	1/2"	1/2"
TM1-4040	1077	1025	Ø102	3/4"	1/2"
TM1-4080	2099	2047	Ø102	3/4"	1/2"
TM1-40120	3115	3063	Ø102	3/4"	1/2"

Remark:
4" ro membrane housing has two types according to pipe design: seamed or seamless.
Seamed vessel thickness:1.25mm with 300psi working pressure
Seamless vessel thickness:1.8mm with 300psi working pressure
Both housing with same structure design

Warranty:

1 year Since the date of shipment.

Warranty Terms

1. Under the terms of this warranty, if the product has a failure occurs under normal usage within warranty period, we will provide free maintenance service based on the proof-documents and invoice(copy) of failure product.

2. We will provide paid maintenance service by under conditions within warranty.

(1) Failure or damage due to force majeure.

(2) Failure or damage due to transport or unloading.

(3) Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.

(4) Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.

3. Please deliver the failure product by original packing for maintenance service, we will not be responsible for any failure or damage in transportation if customer use non-original packing or improper packing.
