Stainless Steel Multi Bag Filter Housing, PP bag filter, PE bag filter housing, beverage filter housing, Multi-bag filter system, Industrial bag filter housing, High-pressure stainless steel bag filter, Sanitary grade stainless steel filter
SS304 SS316L Stainless Steel Multi Bag Filter Housing
Features:
> It reduces product loss and make the filter bag change-outs easier.
> It ensures that there is nearly no side leakage during the filtration.
> It ensures that the flow path is smooth with minimum resistance and there is no blind angle.

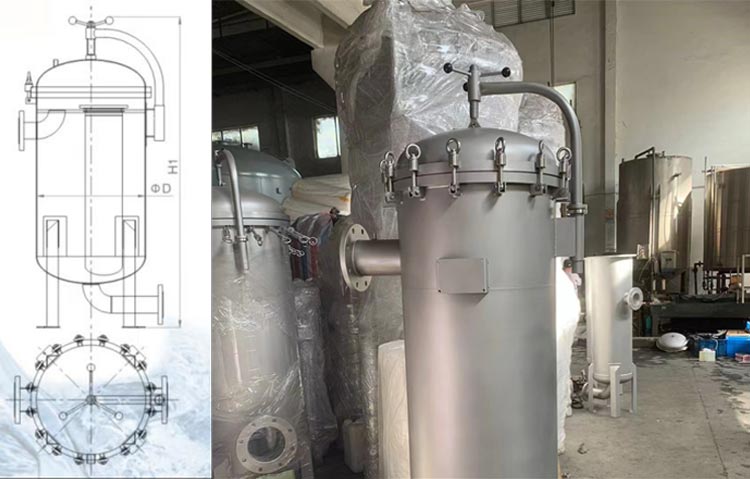

| NO. | MODEL | SPEC（φD×H1mm) | FILTER BAG | BAG QTY | INLET/OUTLET | MAX CAPACITY(T/H) |
| 1 | TM-D0201 | φ450×1200 | 1# | 2 | DN65 | 40 |
| 2 | TM-D0202 | φ450×1450 | 2# | 2 | DN65 | 80 |
| 3 | TM-D0301 | φ550×1300 | 1# | 3 | DN80 | 60 |
| 4 | TM-D0302 | φ550×1530 | 2# | 3 | DN80 | 120 |
| 5 | TM-D0401 | φ600×1350 | 1# | 4 | DN100 | 80 |
| 6 | TM-D0402 | φ600×1600 | 2# | 4 | DN100 | 160 |
| 7 | TM-D0501 | φ650×1400 | 1# | 5 | DN125 | 100 |
| 8 | TM-D0502 | φ650×1650 | 2# | 5 | DN125 | 200 |
| 9 | TM-D0601 | φ700×1450 | 1# | 6 | DN125 | 120 |
| 10 | TM-D0602 | φ700×1680 | 2# | 6 | DN125 | 240 |
| 11 | TM-D0801 | φ800×1550 | 1# | 8 | DN150 | 160 |
| 12 | TM-D0802 | φ800×1780 | 2# | 8 | DN150 | 320 |
| 13 | TM-D1001 | Φ900×1690 | 1# | 10 | DN200 | 200 |
| 14 | TM-D1002 | φ900×1925 | 2# | 10 | DN200 | 400 |
Trade:
MOQ: 1 Set Stainless Steel Water Filter
Trade Terms: CIF, FCR, FOB, EXW
Payment Terms: L/C, T/T, Western Union, MoneyGram; 30% deposit in advance, 70% balance before shipping
Delivery Time: 10-30 working days depend on quantity
Packing: Standard package
Shipping: By sea, by air etc.
Service:
1. Professional technology support
2. 1 years quality guarantee, all products 100% tested by water pressure before shipment.
3. Delivery in time
4. Most competitive price, professional factory
5. Many years production and sales experience
6. Commitment to our customers, friendly staff
7. Stainless steel material, better quality, environmental friendly.
