Quick Open Flange Stainless Steel Cartridge Filter Housing

Quick Open Flange Stainless Steel Cartridge Filter Housing

Quick Open Flange SS304 SS316 Stainless Steel Cartridge Filter Housing

For cover installation devide into 3 types:

1.TC-Clamp Cartridge Filter Housing

2. Basic Flange Filter Housing

3. Quick open Flange Cartridge Filter Housing

TC-Clamp Cartridge

Filter Housing

Basic Flange

Filter Housing

Quick open Flange

Cartridge Filter Housing

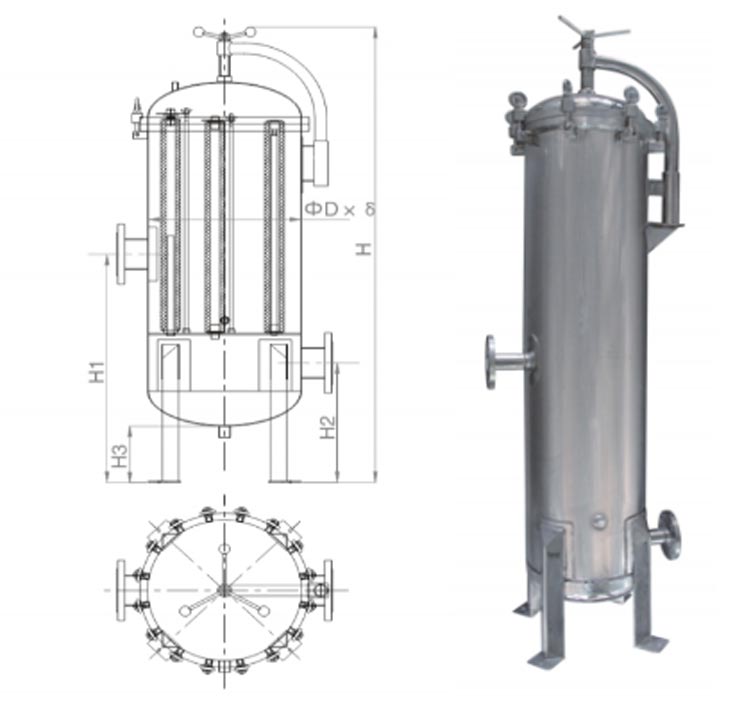

NO.	MODEL	NAME	SPEC(φD×H×δmm)	INLET HEIGHT(H1mm)	OUTLET HEIGHT(H2mm)	H3mm	INLET
1	TM-C0740	C7L40	φ250×1700×2.0	820	300	150	DN50
2	TM-C1040	C10L40	φ300×1725×2.0	835	315	150	DN50
3	TM-C1540	C15L40	φ350×1760×2.0	845	325	150	DN65
4	TM-C2040	C20L40	φ400×1800×2.5	860	345	150	DN65
5	TM-C2540	C25L40	φ450×1830×2.5	875	360	150	DN80
6	TM-C3240	C32L40	φ500×1870×2.5	930	410	200	DN80
7	TM-C3540	C35L40	φ550×1895×3.0	945	425	200	DN80
8	TM-C4540	C45L40	φ600×1920×3.0	960	450	200	DN80
9	TM-C5540	C55L40	φ700×1970×3.0	985	475	200	DN100
10	TM-C7040	C70L40	φ800×2070×4.0	1060	550	250	DN100
11	TM-C8040	C80L40	φ900×2120×4.0	1080	575	250	DN125
12	TM-C10040	C100L40	φ1000×2200×4.0	1110	600	250	DN125

Features:

High Filter precision, diameter of cartridge hole average
Small filtration resistance, Lage throughput, cleaning ability, long service life
High purity of filter materials, no pollution
acid, alkaline etcchemical solvents resisting
High strength, high temperature resistance, cartridge is not easy deformation
Low cost in operation, easy to clean, convenient to exchange cartridge

Application:

Chemicals and petrochemicals

Drinking water

Liquid desalination

Electronics

Food and drink

Fuel material extraction

Pharmaceuticals and biotechnology

Pulp and paper

Waste water

Trade:

MOQ: 1 Set Stainless Steel Water Filter

Trade Terms: CIF, FCR, FOB, EXW
Payment Terms: L/C, T/T, Western Union, MoneyGram; 30% deposit in advance, 70% balance before shipping
Delivery Time: 10-30 working days depend on quantity
Packing: Standard package
Shipping: By sea, by air, by express etc.

Service:

1. Professional technology support
2. 1 years quality guarantee, all products 100% tested by water pressure before shipment.
3. Delivery in time
4. Most competitive price, professional factory
5. Many years production and sales experience
6. Commitment to our customers, friendly staff
7. Stainless steel material, better quality, environmental friendly.
