Mechanical Filter Housing, activated carbon quartz sand filter water softener pretreatment system filter tank
Mechanical Filter Housing, Activated Carbon Quartz Sand Filter Tank, Stainless Steel Tanks
Mechanical filter are also called pressure filters. They are an important part of the pretreatment and water purification systems for pure water preparation. The material is made of steel rubber lining or stainless steel. According to the different filter media, it can be divided into natural quartz sand filter, multi-media filter, activated carbon filter, manganese sand filter,etc.According to the water inlet method, it can be divided into single-flow filter, The dual-flow filter can be used in combination or alone according to the actual situation.

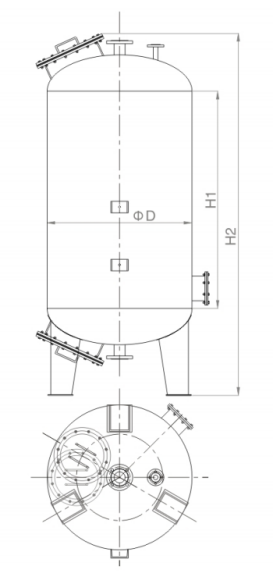

| NO. | MODEL | SPECφD×H2(mm) | CAPACITY(m³/h) | INLET | OUTLET | VENT |
| 1 | TM-JX400 | φ400×2150 | ~1.5 | DN32 | DN32 | DN20 |
| 2 | TM-JX600 | φ600×2250 | ~3 | DN40 | DN40 | DN20 |
| 3 | TM-JX800 | Φ800×2450 | ~5 | DN40 | DN40 | DN20 |
| 4 | TM-JX1000 | φ1000×2550 | ~7.5 | DN50 | DN50 | DN25 |
| 5 | TM-JX1200 | φ1200×2650 | ~11 | DN50 | DN50 | DN25 |
| 6 | TM-JX1500 | φ1500×2850 | ~18 | DN65 | DN65 | DN32 |
| 7 | TM-JX1600 | φ1600×2950 | ~20 | DN65 | DN65 | DN32 |
| 8 | TM-JX1800 | φ1800×3050 | ~25 | DN80 | DN80 | DN32 |
| 9 | TM-JX2000 | φ2000×3150 | ~30 | DN80 | DN80 | DN32 |
| 10 | TM-JX2200 | φ2200×3300 | ~38 | DN100 | DN100 | DN40 |
| 11 | TM-JX2400 | φ2400×3400 | ~45 | DN100 | DN100 | DN40 |
| 12 | TM-JX2500 | φ2500×3450 | ~50 | DN100 | DN100 | DN40 |
| 13 | TM-JX2600 | φ2600×3450 | ~55 | DN125 | DN125 | DN50 |
| 14 | TM-JX2800 | φ2800×3600 | ~60 | DN125 | DN125 | DN50 |
| 15 | TM-JX3000 | φ3000×3900 | ~70 | DN150 | DN150 | DN50 |
| 16 | TM-JX3200 | φ3200×4500 | ~80 | DN150 | DN150 | DN50 |
Trade:
MOQ: 1 Set
Trade Terms: CIF, FCR, FOB, EXW
Payment Terms: L/C, T/T, Western Union, MoneyGram; 30% deposit in advance, 70% balance before shipping
Delivery Time: 10-30 working days depend on quantity
Packing: Standard package
Shipping: By sea, by air, by express etc.
Service:
1. Professional technology support
2. 1 years quality guarantee, all products 100% tested by water pressure before shipment.
3. Delivery in time
4. Most competitive price, professional factory
5. Many years production and sales experience
6. Commitment to our customers, friendly staff
7. Stainless steel material, better quality, environmental friendly.
