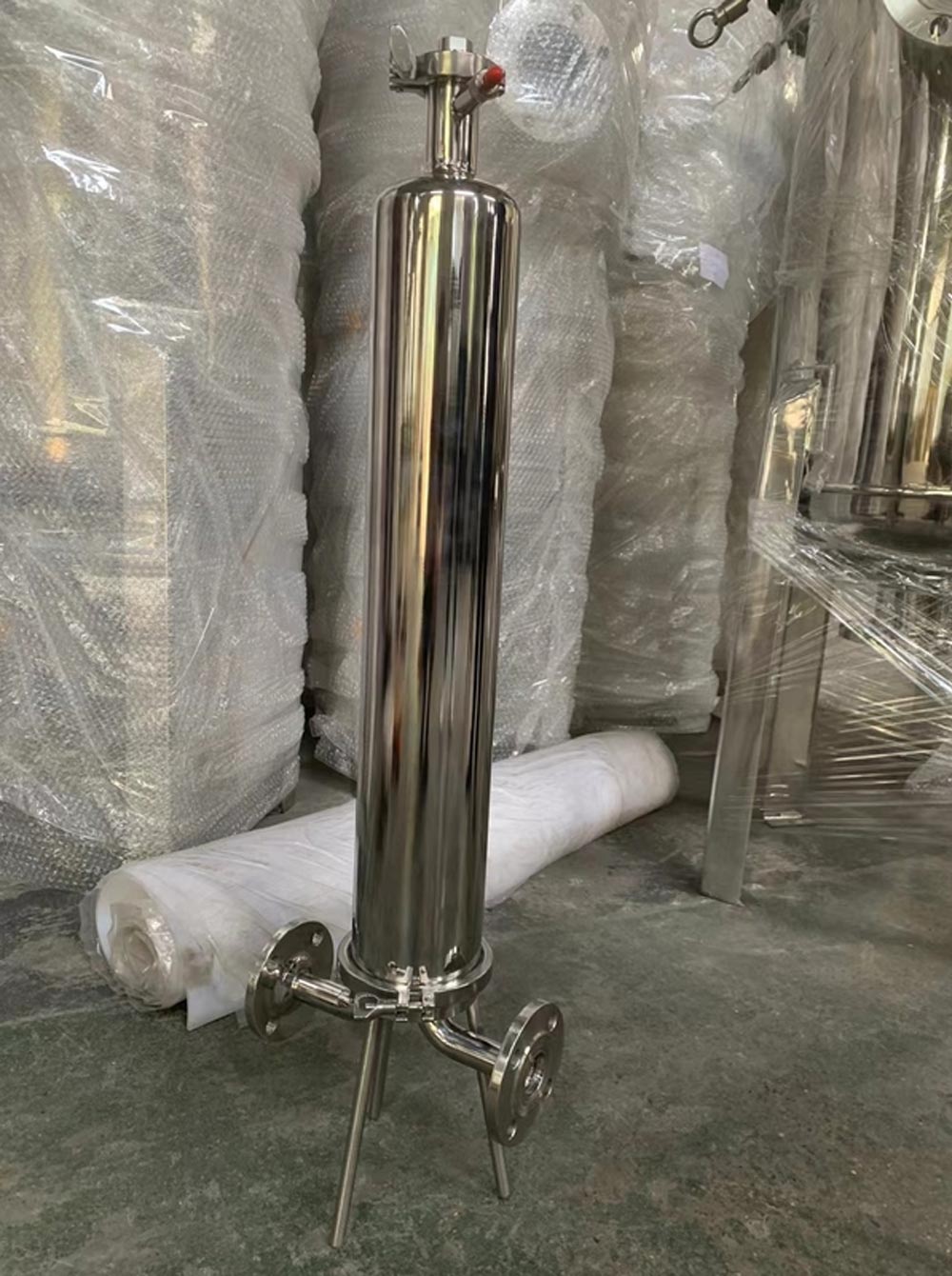

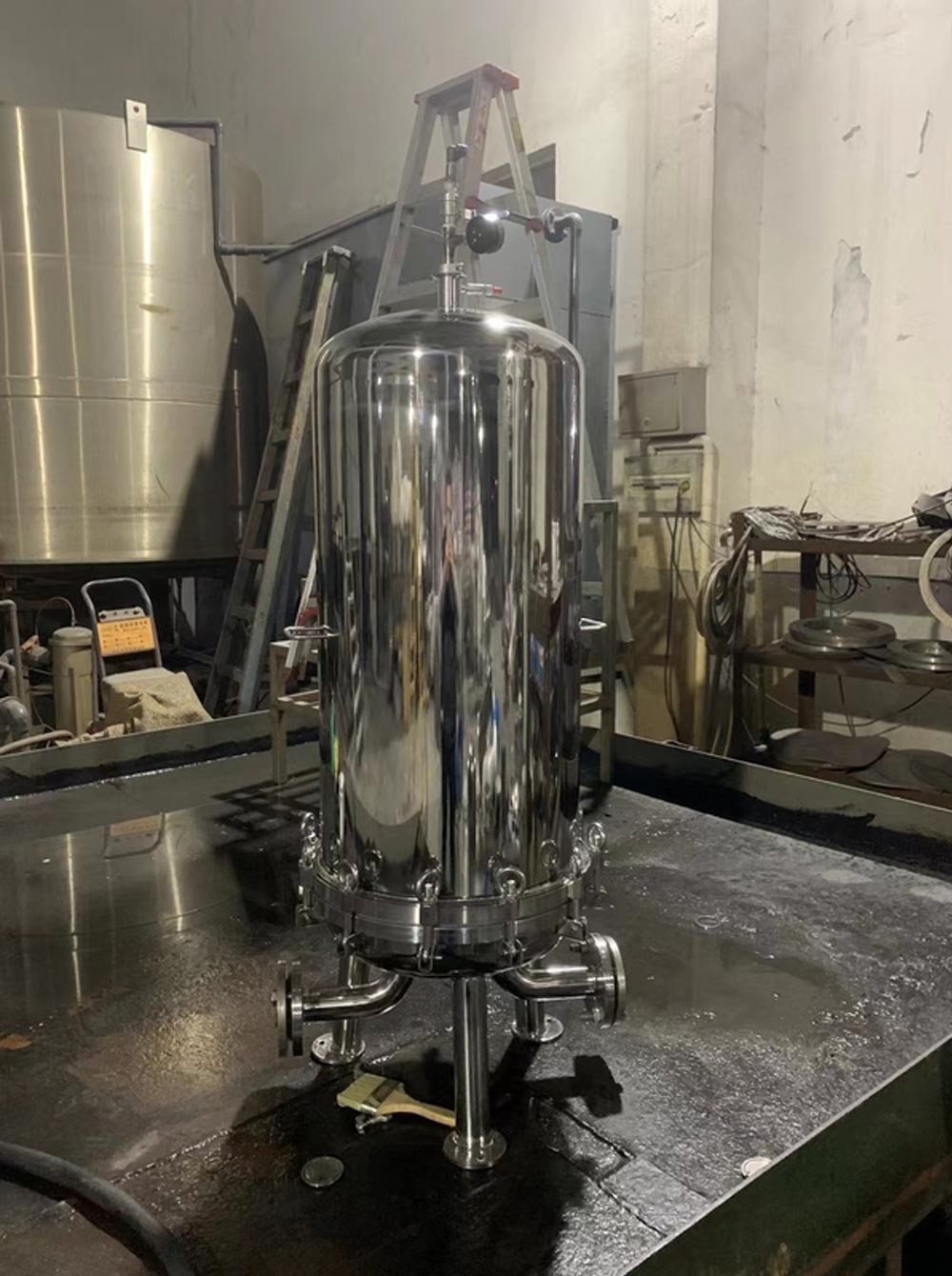

SS 304 316L 10/20 Inch Sanitary Code 7 PP Cartridge Micro Filter Housing Food Grade Single Multi Equipment
SS 304 316L Sanitary Code PP Cartridge Micro Filter Housing Food Grade Single Multi Equipment

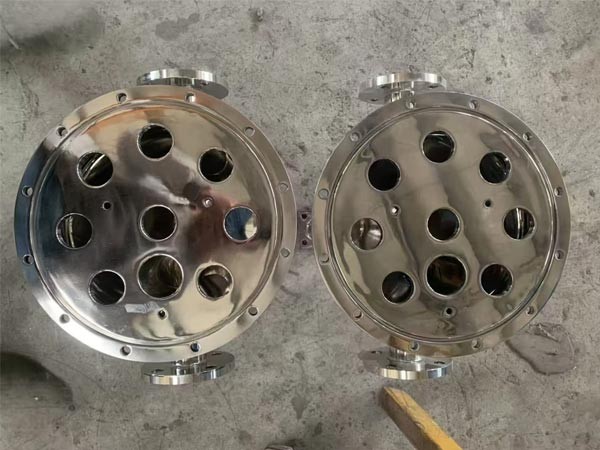

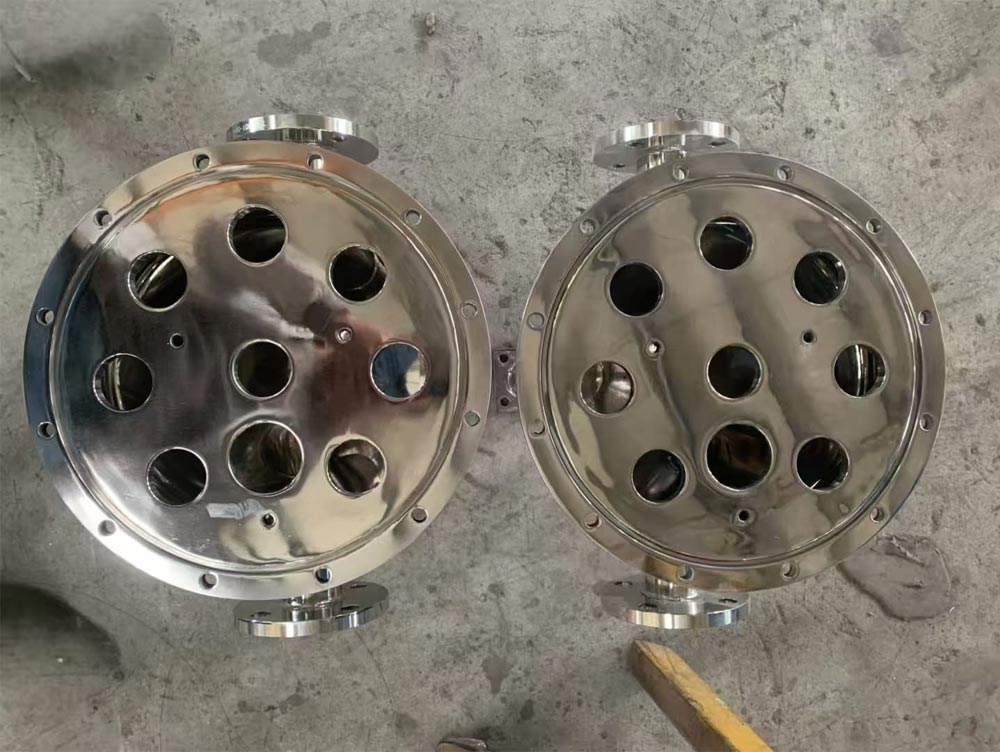

Material: SUS304, SUS316L; Flange types: flat plate flange, quick-lock flange; Internal structure types: 222 structure, 226 structure; Surface treatment types: mirror polishing, matte polishing, sandblast; Interface types: quick connection, flange

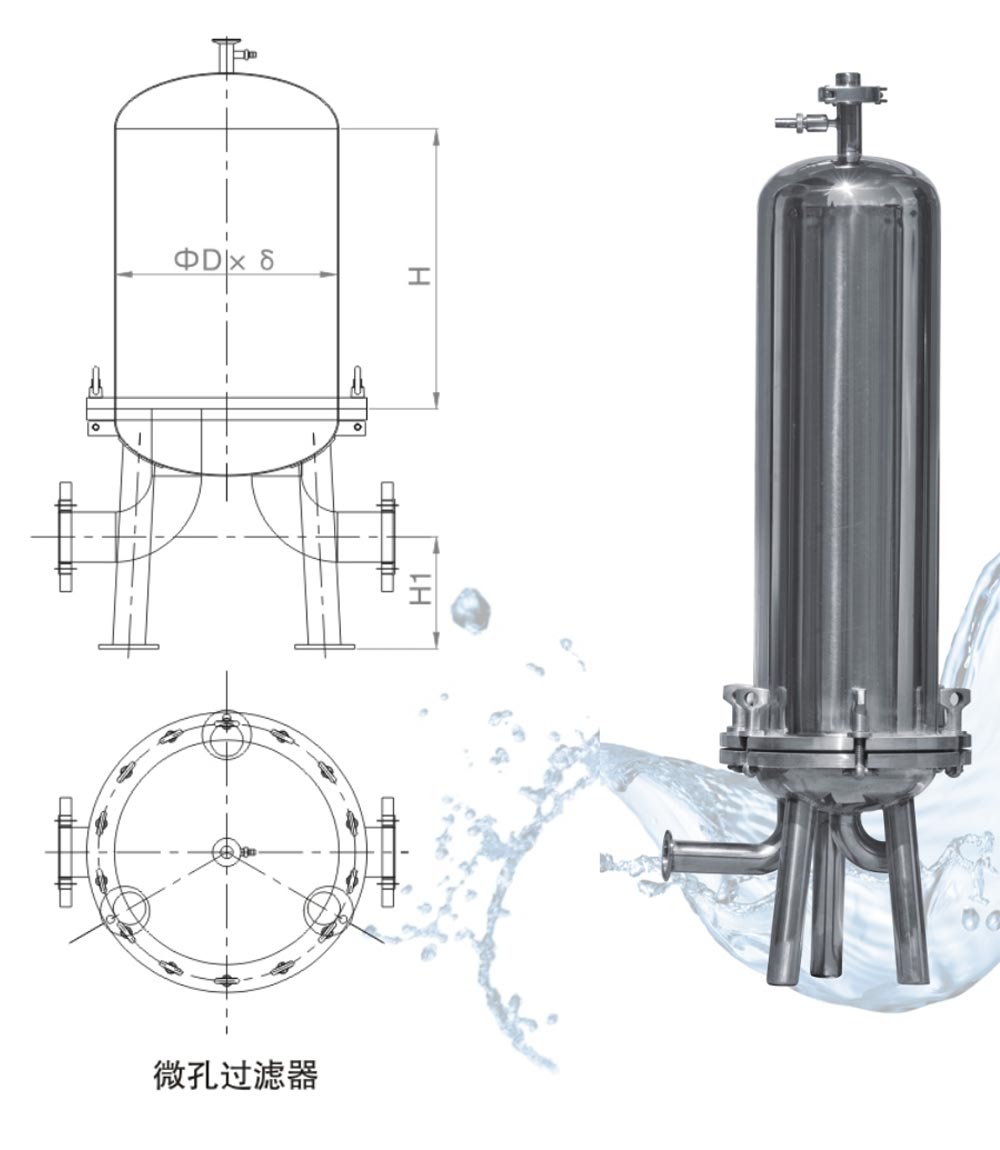

NO. | MODEL | NAME | SPEC(ΦD*H*δmm) | INLET/OUTLET |
1 | TM-0110 | 1*10" | Φ102*250*1.5 | Φ25 |
2 | TM-0120 | 1*20" | Φ102*500*1.5 | Φ25 |
3 | TM-0310 | 3*10" | Φ180*250*1.5 | Φ32 |
4 | TM-0320 | 3*20" | Φ180*500*1.5 | Φ32 |
5 | TM-0520 | 5*20" | Φ230*500*2.0 | Φ51 |
6 | TM-0530 | 5*30" | Φ230*750*2.0 | Φ51 |
7 | TM-0820 | 8*20" | Φ300*500*2.0 | DN50 |
8 | TM-0830 | 8*30" | Φ300*750*2.0 | DN50 |
9 | TM-1220 | 12*20" | Φ350*500*2.5 | DN65 |
10 | TM-1230 | 12*30" | Φ350*750*2.5 | DN65 |
11 | TM-1720 | 17*20" | Φ400*500*2.5 | DN80 |
12 | TM-1730 | 17*30" | Φ400*750*2.5 | DN80 |
13 | TM-2120 | 21*20" | Φ450*500*2.5 | DN80 |
14 | TM-2130 | 21*30" | Φ450*750*2.5 | DN80 |
15 | TM-3020 | 30*20" | Φ500*500*3.0 | DN100 |
16 | TM-3030 | 30*30" | Φ500*750*3.0 | DN100 |
Warranty:
1 year Since the date of shipment.
Warranty Terms
1. Under the terms of this warranty, if the product has a failure occurs under normal usage within warranty period, we will provide free maintenance service based on the proof-documents and invoice(copy) of failure product.
2. We will provide paid maintenance service by under conditions within warranty.
· (1) Failure or damage due to force majeure.
· (2) Failure or damage due to transport or unloading.
· (3) Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
· (4) Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.
3. Please deliver the failure product by original packing for maintenance service, we will not be responsible for any failure or damage in transportation if customer use non-original packing or improper packing.
